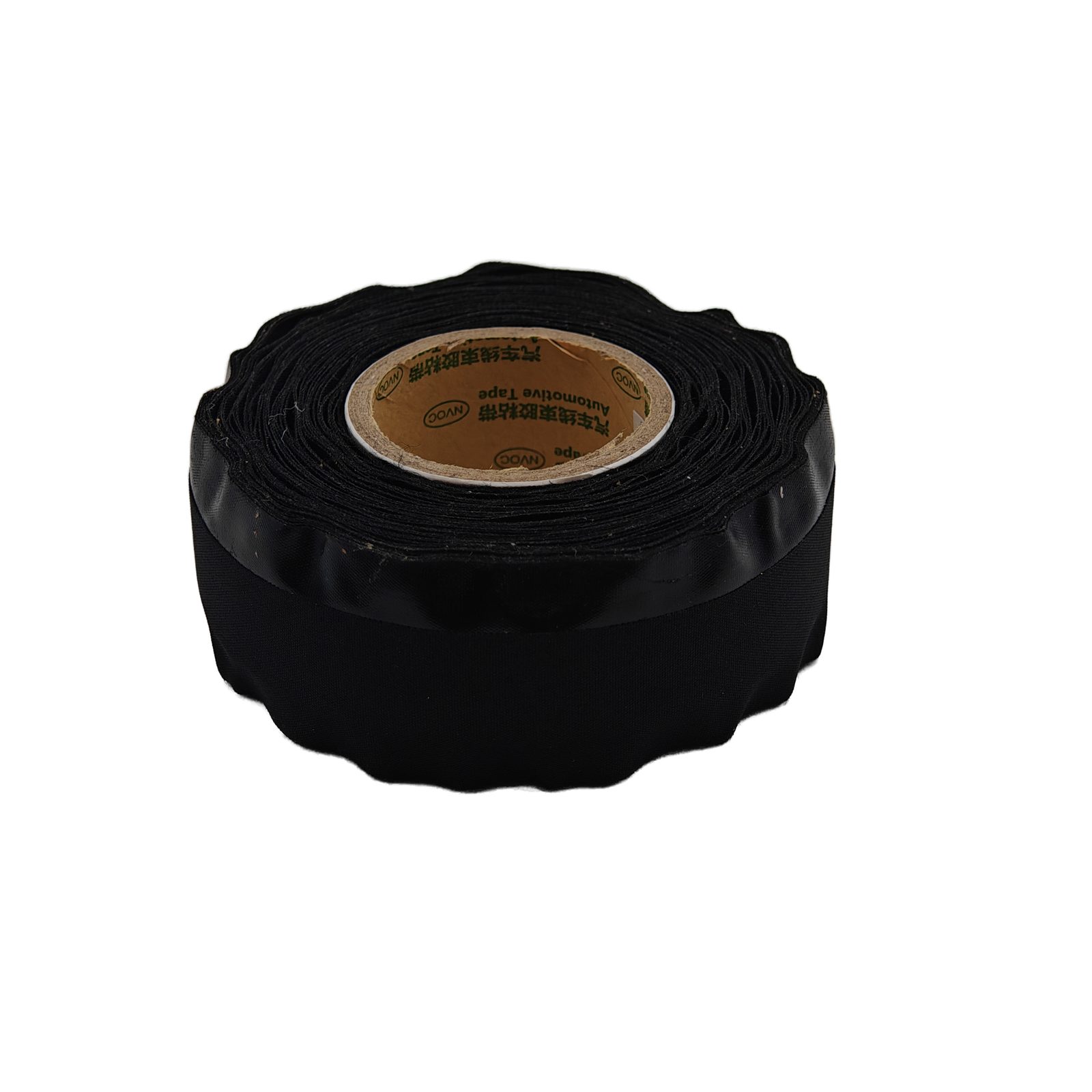

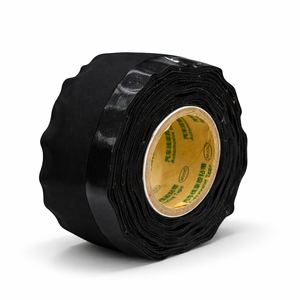

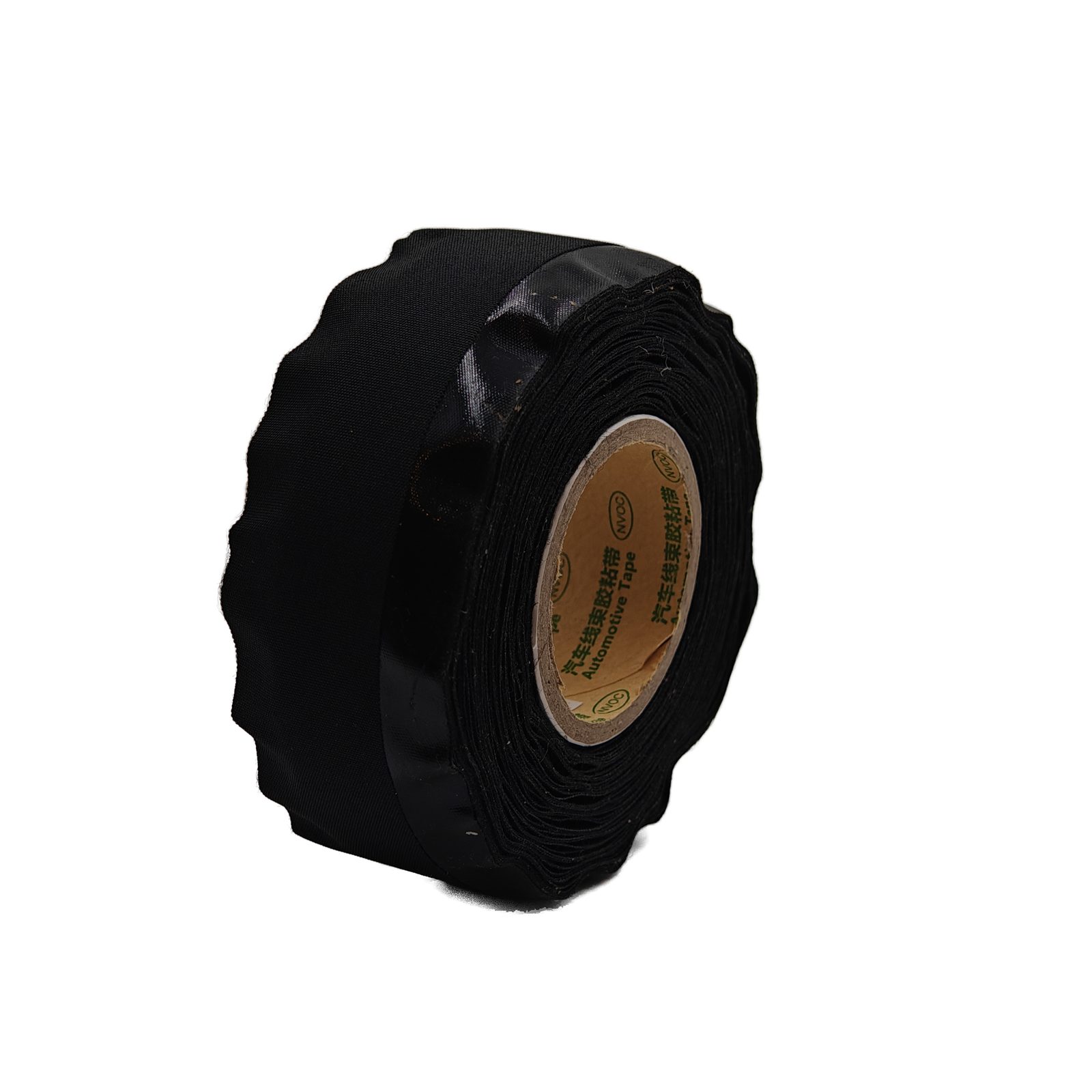

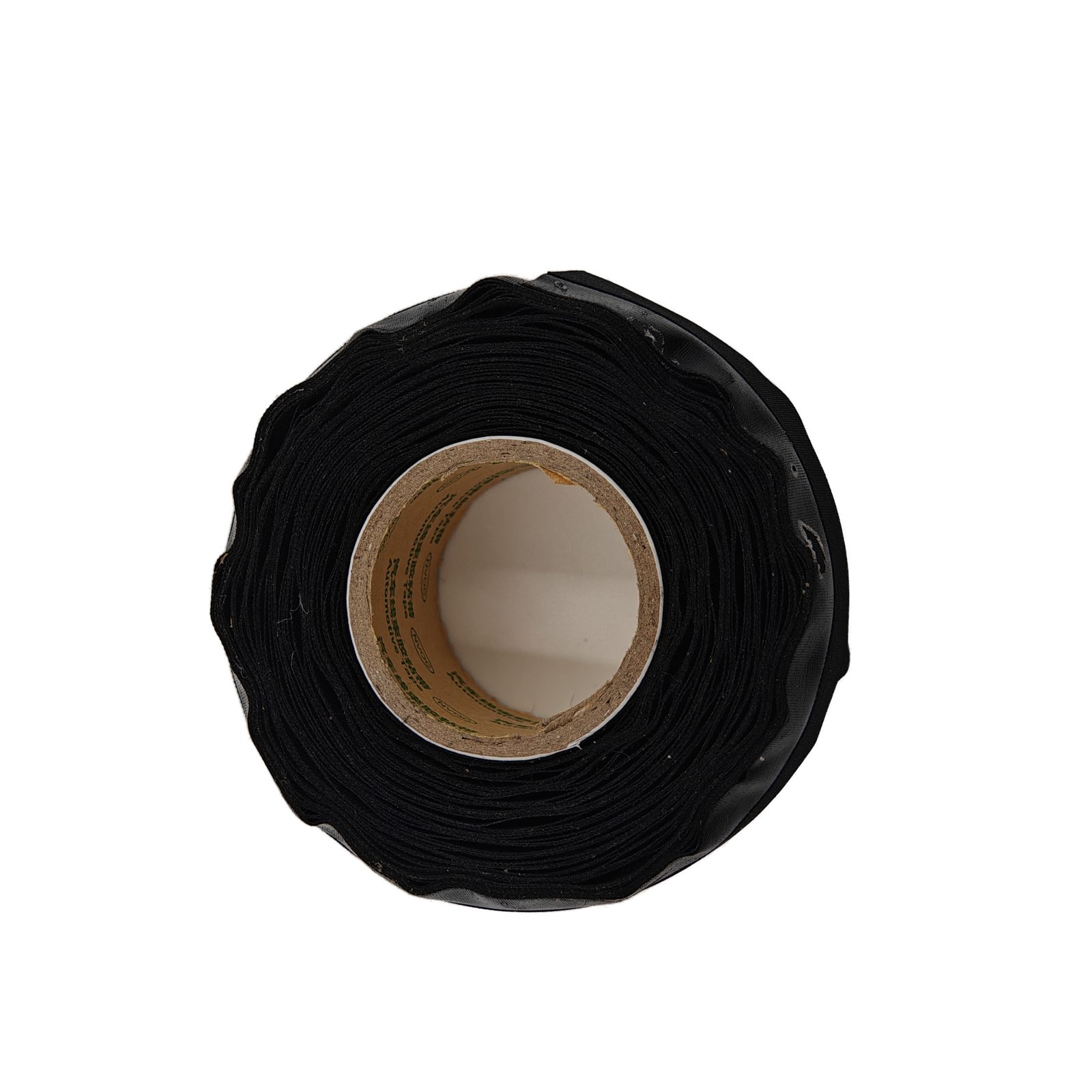

X-1300A Flexible Sleeve Tape
Overview
Sleeve tape uses high-strength, wear-resistant polyester fabric as the base material, coated with a high-performance synthetic rubber adhesive layer, specially designed for harsh environments such as engine compartments. It features good flexibility, high adhesion, exceptional abrasion resistance, chemical resistance, high temperature resistance and flame retardancy.
Key features
- Strong flexibility
- High adhesion
- Exceptional abrasion resistance
- Chemical and high temperature resistance
- Flame retardancy
Technical data
| Property | Unit | Model |
|---|---|---|
| Product Grade | X-1300A | |
| Color | Black | |
| Substrate | PET Polyester Fabric | |
| Adhesive | Synthetic Rubber | |
| Total Thickness | mm | 0.50 ± 0.06 |
| Tensile Strength | N/cm | ≥160 |
| Elongation at Break | % | ≥10 |
| Adhesion to Steel | N/cm | ≥1.5 |
| Temperature Resistance | °C | -40 ~ 125°C |
| Noise Damping | dB(A) | Class A (≤2) |
| Abrasion Resistance | cycle | Class E (5000~14999) |
| Flame Retardancy | Class B, Self-extinguishing | |
| Environmental Certification | ROHS2.0 REACH |
Note: The above parameters are typical values for reference only.
Unit conversions for comparison: 1 N/cm = 2.5 N/25mm; 1 N/25mm ≈ 102 g/25mm (1 N = 101.97 gf).
Product advantages
Strong Flexibility
The soft polyester fabric base keeps wrapped harnesses flexible and easy to route.
High Adhesion
High-performance synthetic rubber adhesive provides reliable, secure bundling without loosening.
Exceptional Abrasion Resistance
E-class abrasion resistance (5000-14999 cycles), designed for high-wear protection zones.
Chemical & High Temperature Resistance
Resists chemical media with temperature rating 40°C to 125°C for demanding environments such as engine compartments.
Flame Retardancy
B-class self-extinguishing flame retardancy improves electrical safety.
A-Class Noise Damping
A-class noise damping (≤2 dB(A)) provides abrasion and noise protection while avoiding direct contact with conductors.
Application scenarios
Automotive Electrical Harness Bundling
For bundling automotive electrical wire harnesses, especially parts requiring high wear resistance protection.
Harness Wear Protection
Protects harnesses from abrasion against hard components and avoids direct contact wear with conductors.
Noise Damping & Flexible Routing
For routing where noise suppression and soft, flexible harness bending are required.
Standard & certification
ROHS · REACH
Wire wrapping tape for cylindrical bundles
The X-1300A is used as wire wrapping tape around cylindrical and rounded geometry: cable bundles, sleeve ends and edge finishing where a flat tape would crease. Its flexibility also makes it a practical cable wrapping tape for aftermarket and repair work.
Datasheet version: September 2026.
