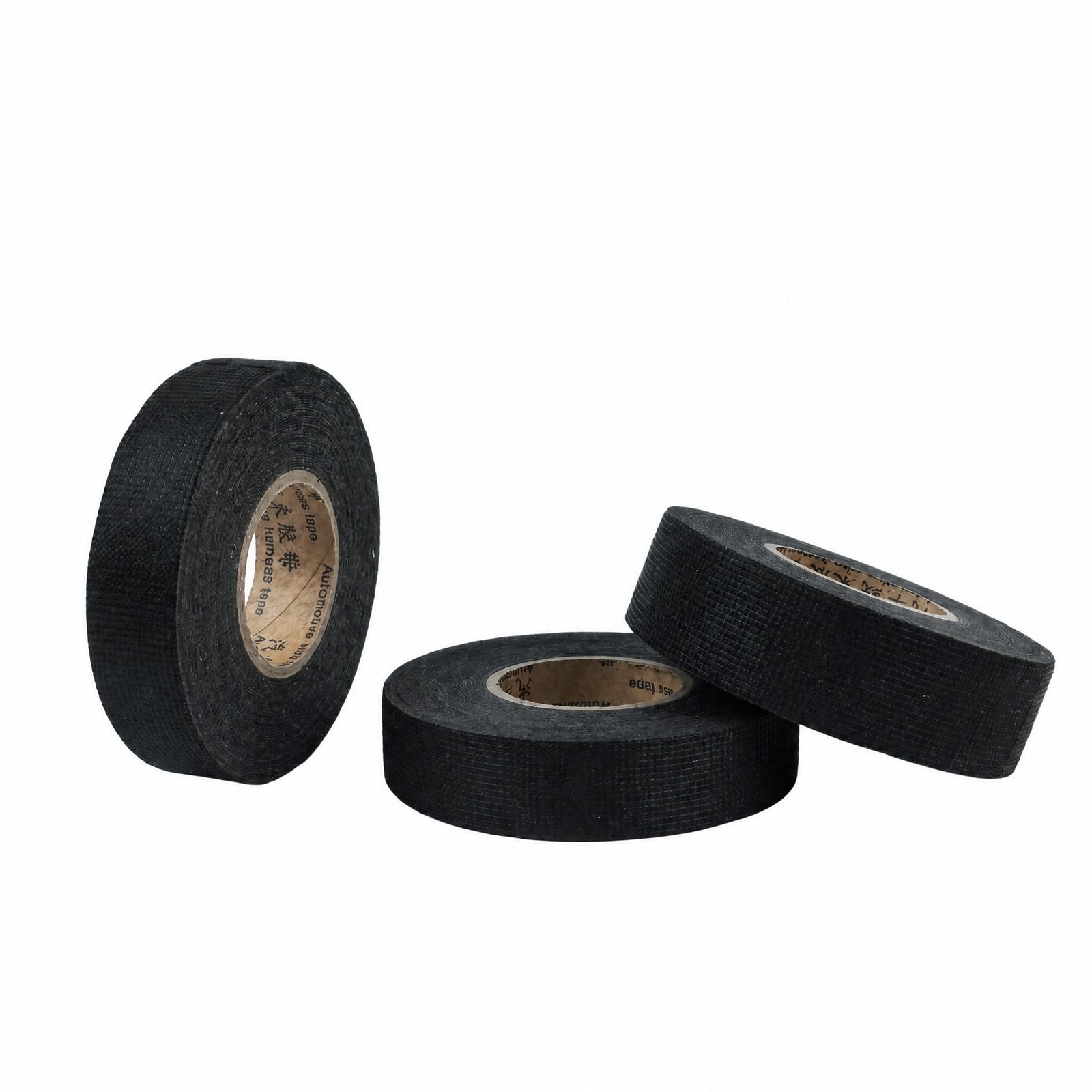

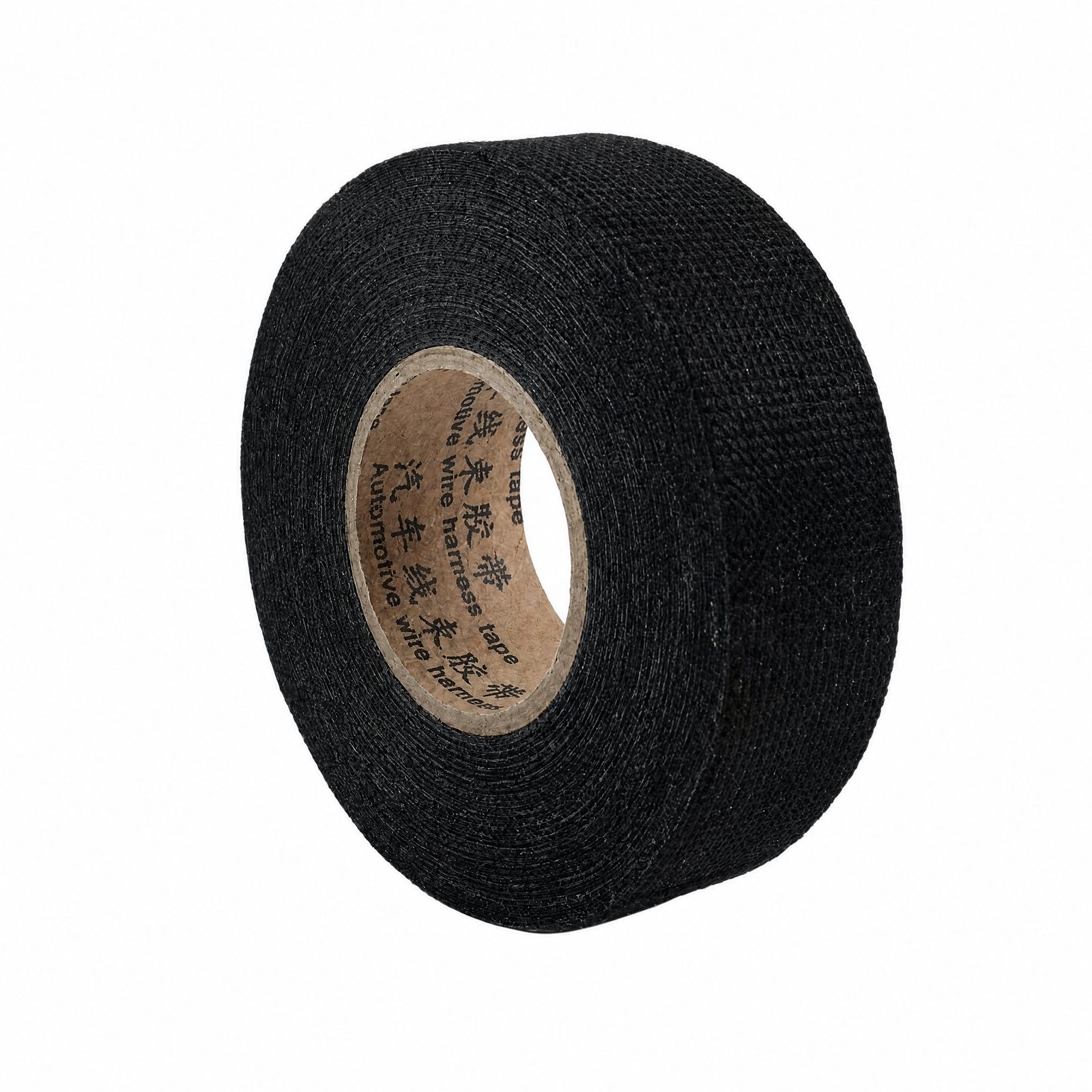

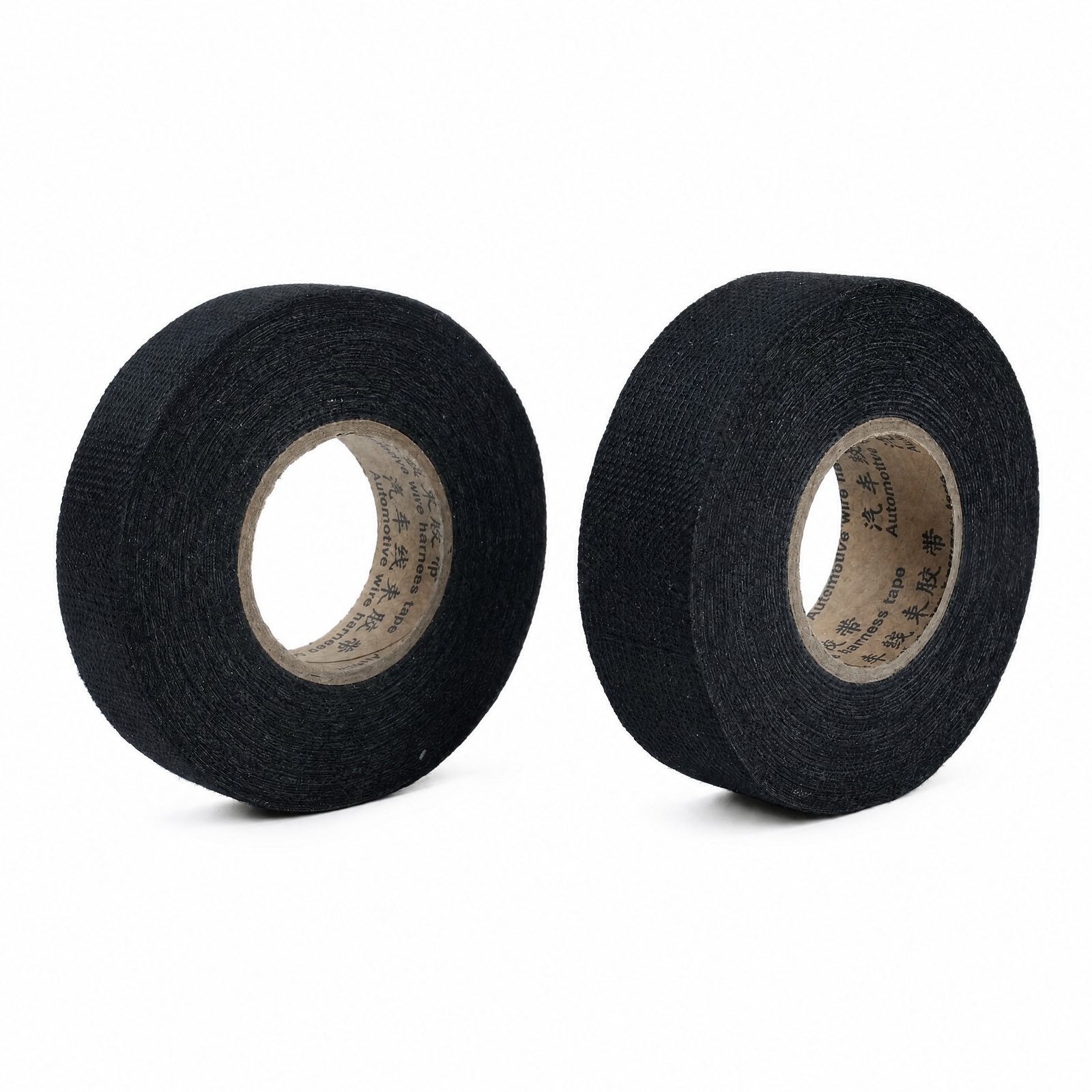

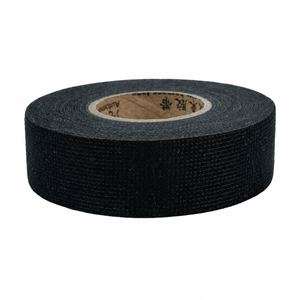

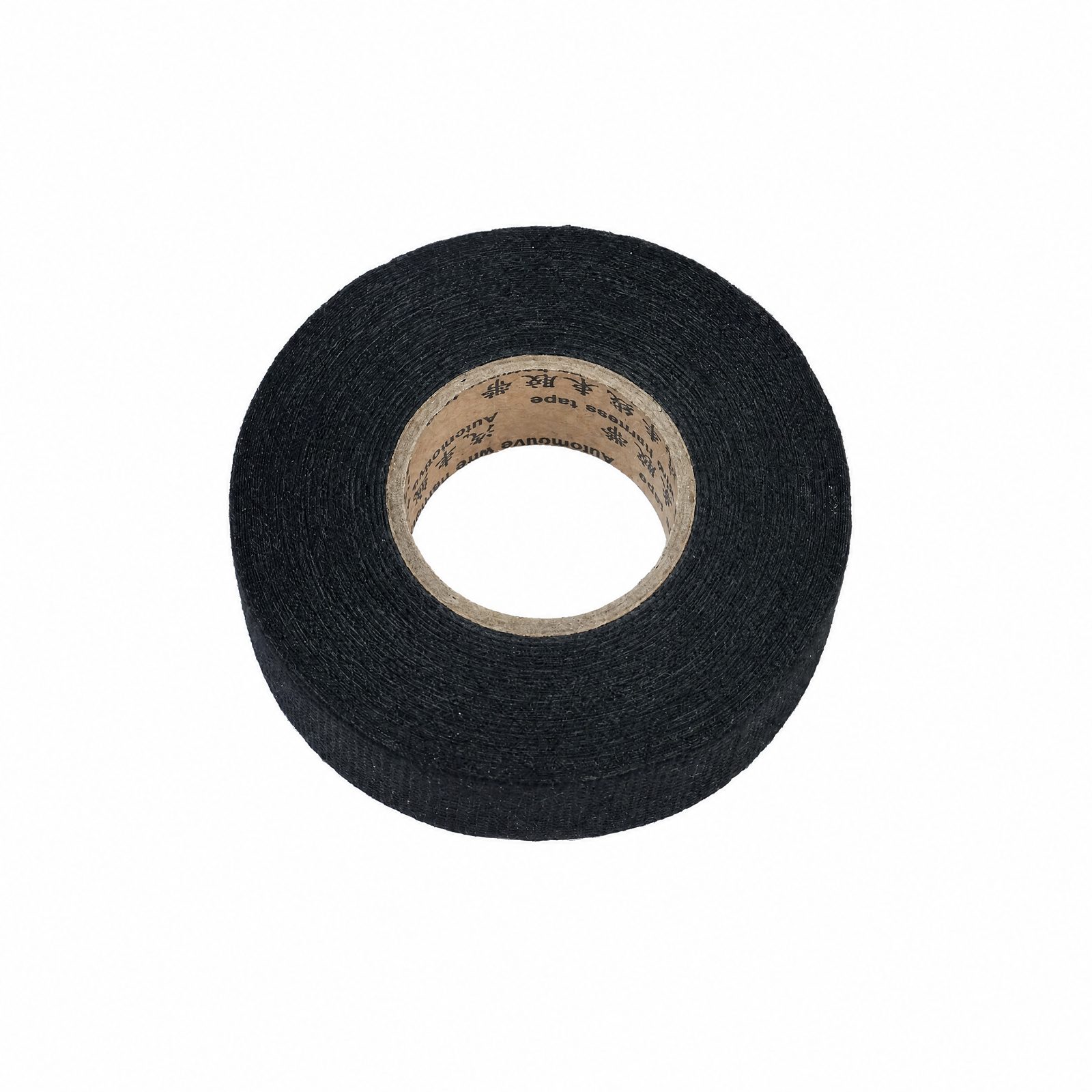

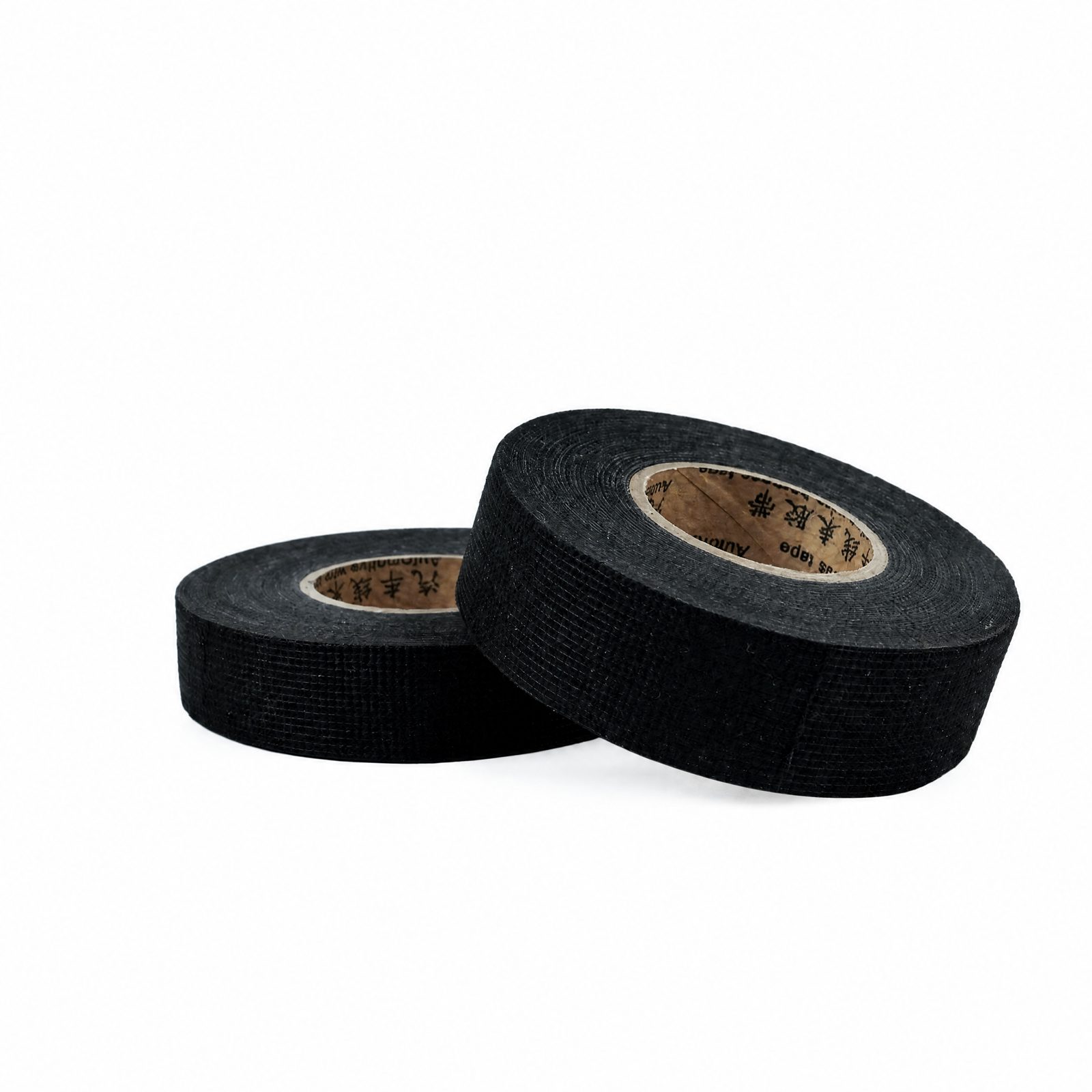

R1005 PET Non-woven (Fleece) Wire Harness Tape
Overview
Wire harness tape in a soft PET non-woven (fleece) construction, coated with a high-performance synthetic rubber-based hot-melt adhesive. The fleece conforms to irregular shapes and dampens noise, which is why it is used for harness branches in vehicle interiors and engine compartments. This product uses high-quality PET non-woven fabric as the base material. It has a soft texture, smooth conformability and can be torn by hand; the adhesive layer uses a high-grade acrylic pressure-sensitive adhesive for temperature, oil and ageing resistance, and meets low-odour and low-VOC requirements.
Key features
- Temperature Resistance
- Oil Resistance
- Excellent Aging Resistance
Technical data
| Property | Unit | Model |
|---|---|---|
| Product Grade | R1005 | |
| Color | Black | |
| Substrate | PET Non-woven Fabric | |
| Adhesive | Synthetic Rubber | |
| Total Thickness | mm | 0.30 |
| Tensile Strength | N/cm | 35 |
| Elongation at Break | % | 18 |
| Adhesion to Steel | N/cm | 4.5 |
| Temperature Resistance | °C | –40 ~ 105°C |
| Noise Damping | dB(A) | Class C (5~10) |
| Abrasion Resistance | cycle | Class A (0~99) |
| Flame Retardancy | Class B, Self-extinguishing | |
| Tearability | Hand-tearable | |
| Environmental Certification | ROHS2.0 REACH |
Note: The above parameters are typical values for reference only.
Unit conversions for comparison: 1 N/cm = 2.5 N/25mm; 1 N/25mm ≈ 102 g/25mm (1 N = 101.97 gf).
Product advantages
Soft, Conformable & Hand-tearable
Soft PET non-woven fabric conforms smoothly to surfaces; easily hand-tearable with no tools required.
Cockpit Noise Reduction
C-class noise damping (5-10 dB(A)) effectively suppresses friction noise from cockpit wiring.
Temperature Resistance
Operating range -40°C to 105°C, suited to vehicle interior temperature conditions.
Oil Resistance
The adhesive resists oil well, maintaining stable adhesion and performance in oily environments.
Excellent Aging Resistance
Resists aging and embrittlement over long-term use with stable tack and reliable service life.
Eco-friendly & Low Odor
Compliant with ROHS2.0 and REACH with low odor and low VOC - ideal for enclosed vehicle interiors.
Application scenarios
Cockpit Wire Harness Bundling
Ideal for bundling and wrapping cockpit wire harnesses, using its noise-damping performance to suppress harness noise.
Automotive Harness Bundling & Wrapping
Widely used for bundling and wrapping automotive wire harnesses with good heat/oil resistance and easy handling.
Noise-Sensitive & Hand-Tearable Applications
For harness protection where quiet operation, hand-tearability and low-odor eco-friendliness are required.
Standard & certification
ROHS · REACH
Automotive wire tape where conformity matters
Fleece Tape is the soft option in an automotive wire tape programme. Where a run passes through a grommet, a clip or a tight radius, the non-woven backing deforms instead of lifting at the edges, so the wrap stays closed. That is also why it is used as automotive harness tape in door and cabin runs where rattle has to be designed out rather than fixed later.
Fleece wire harness tape: common questions
When should I use Fleece Tape instead of a cloth wire harness tape?
Where the surface is irregular or the radius is tight. Cloth tape gives more abrasion protection; fleece tape conforms better and dampens noise.
Datasheet version: September 2026.
