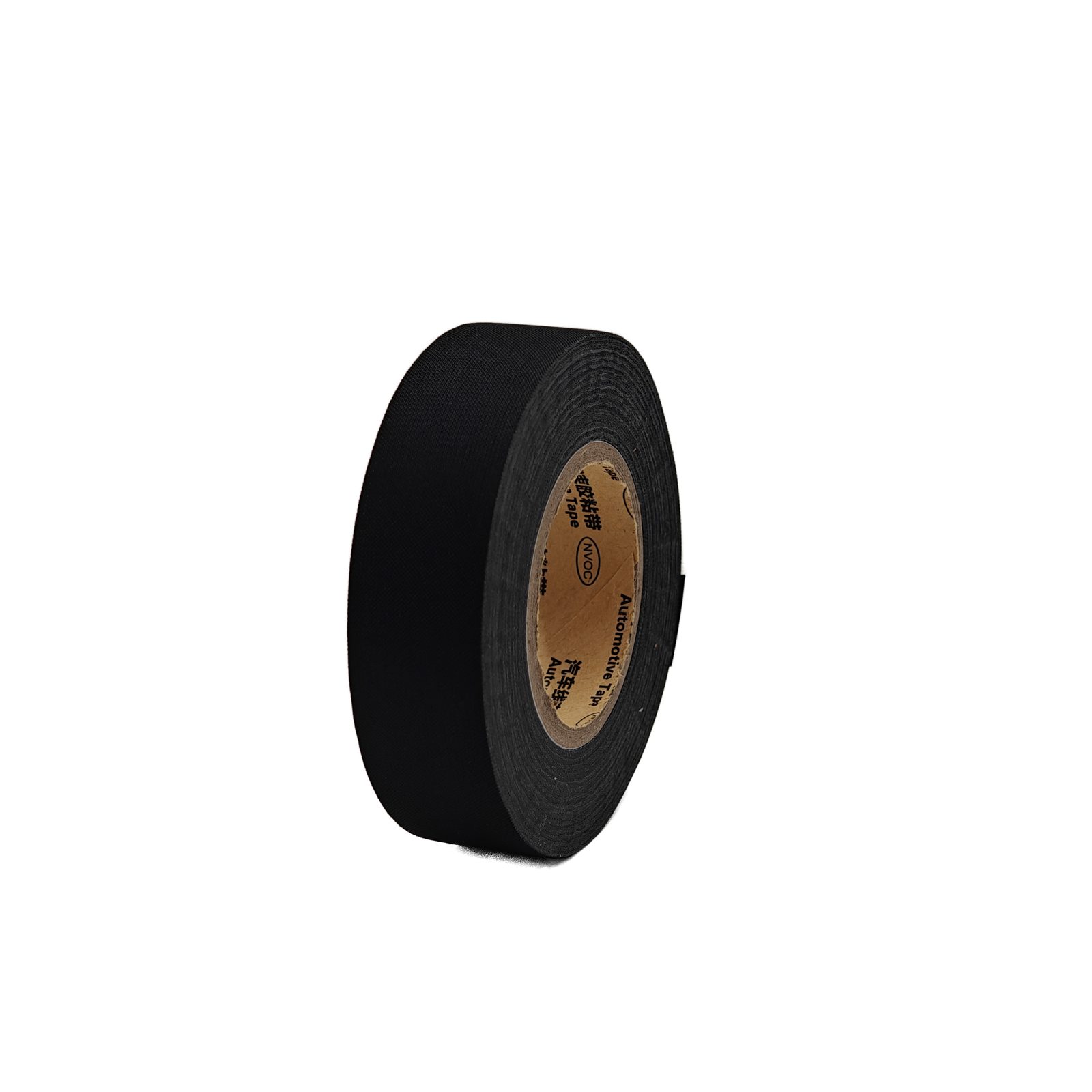

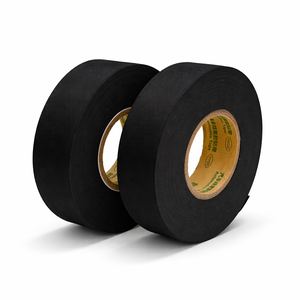

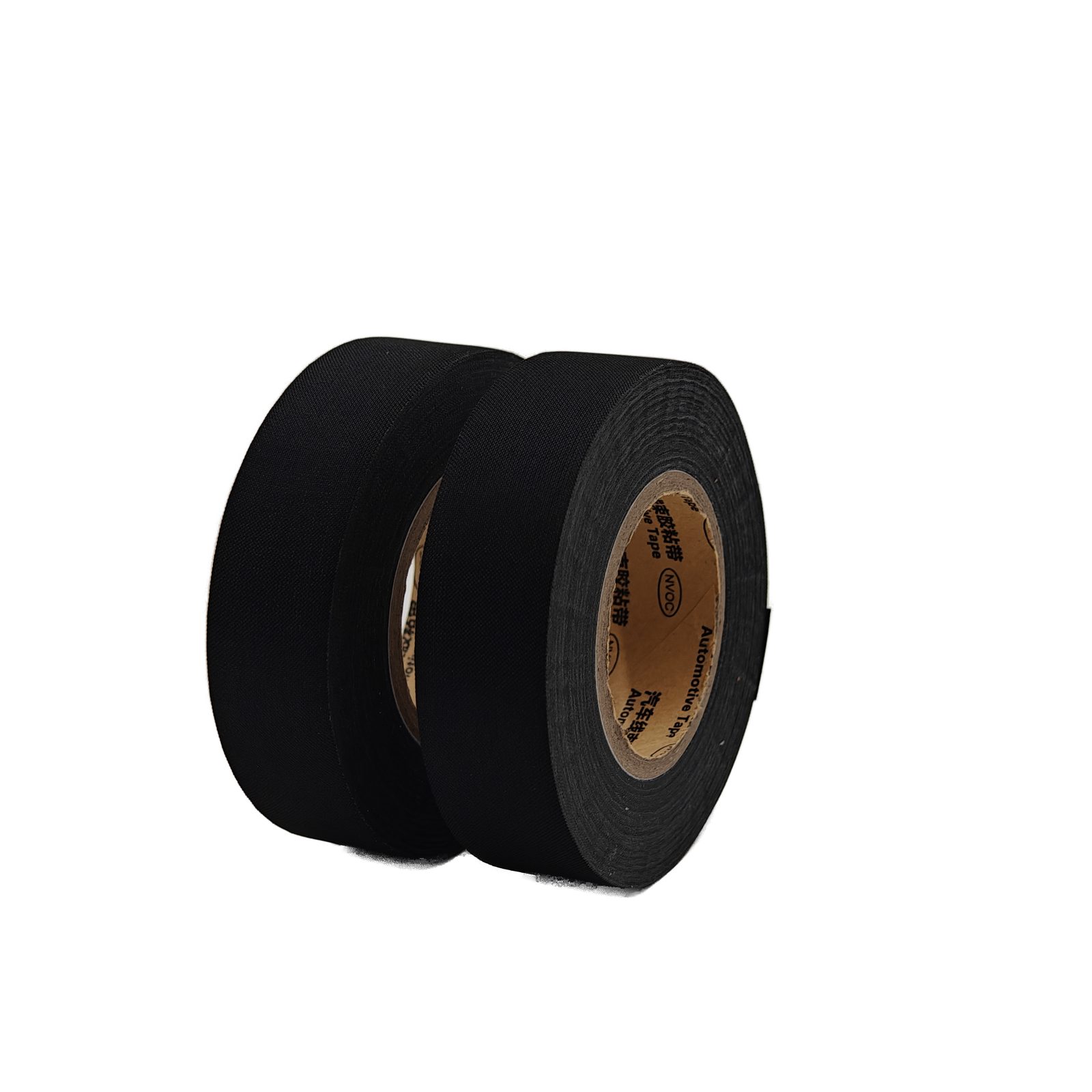

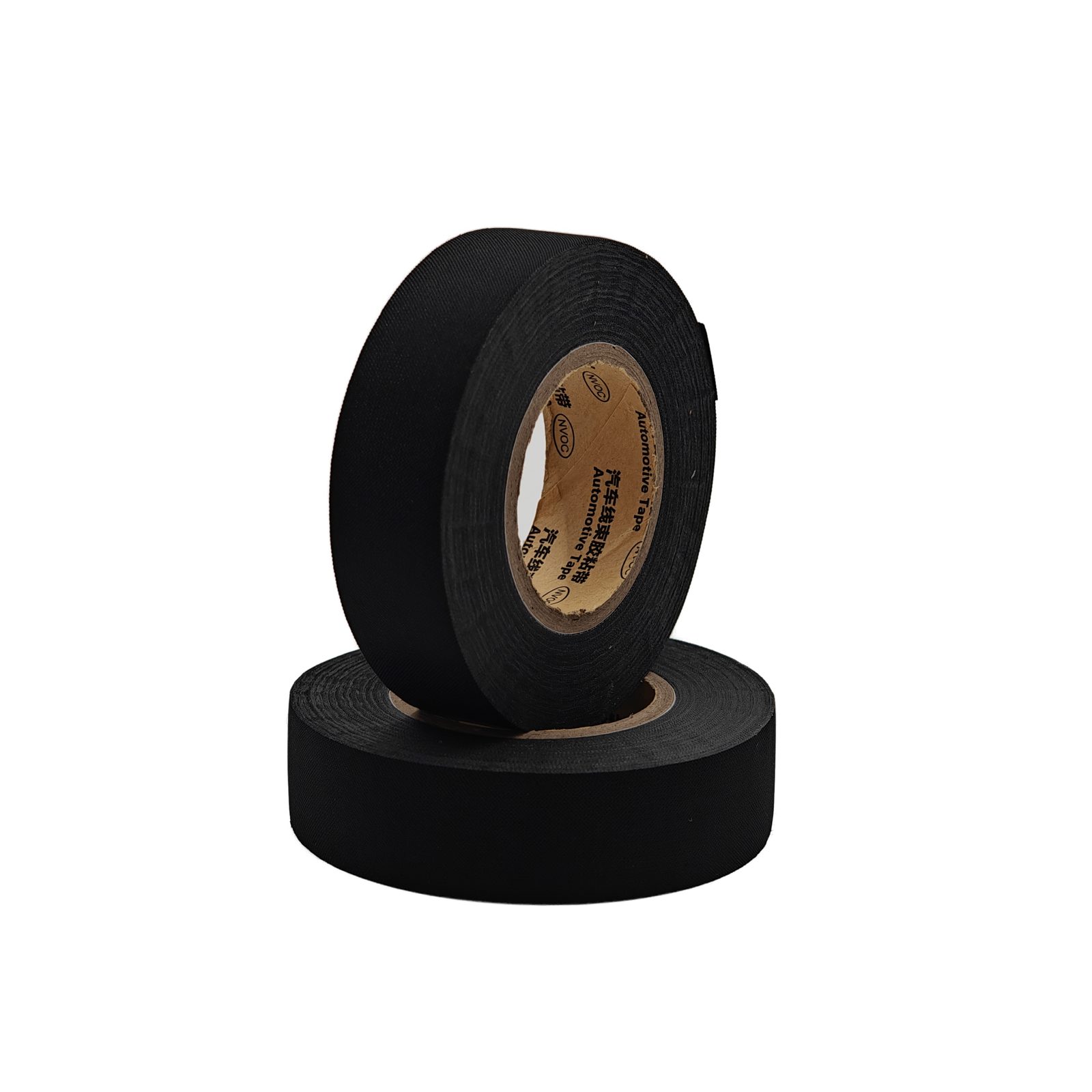

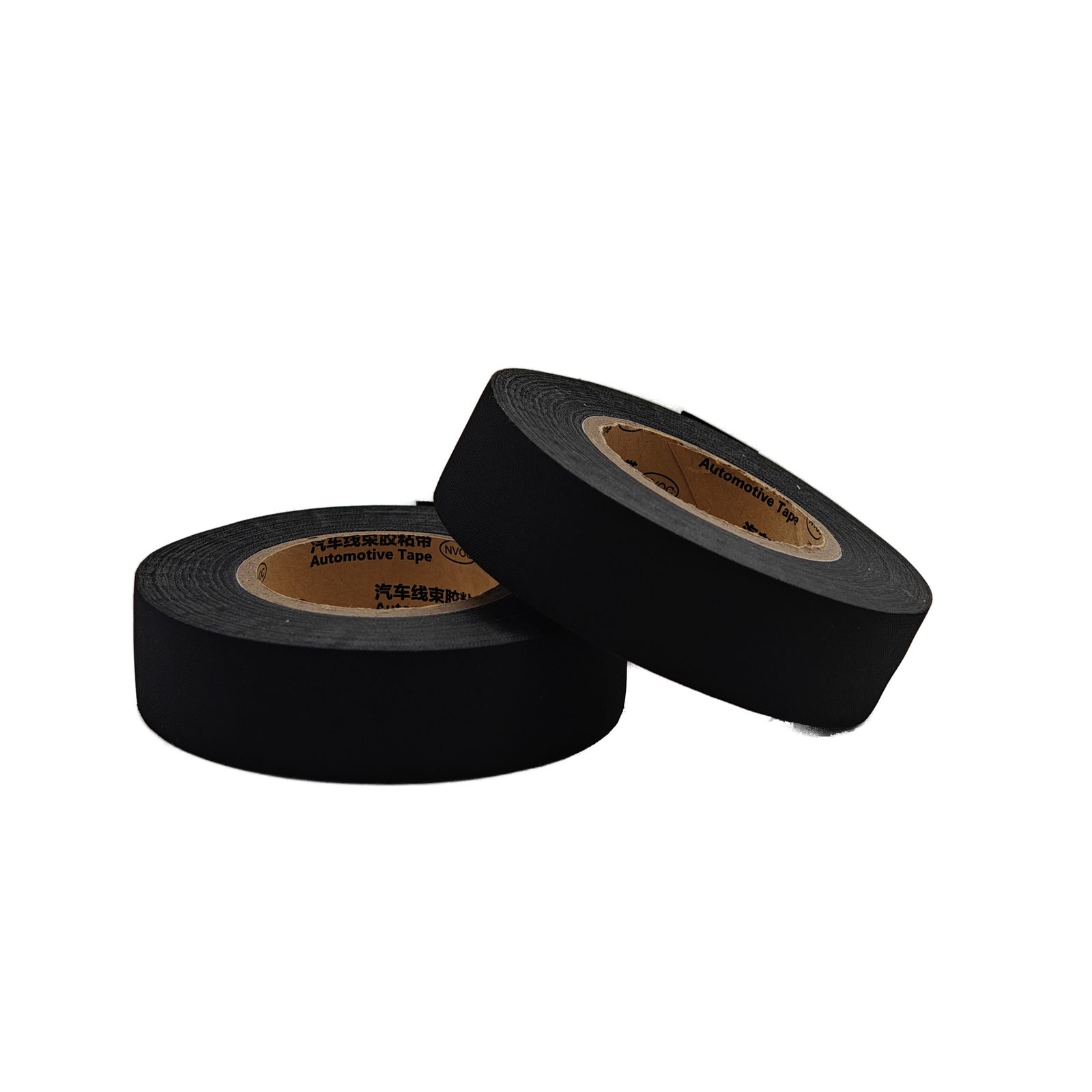

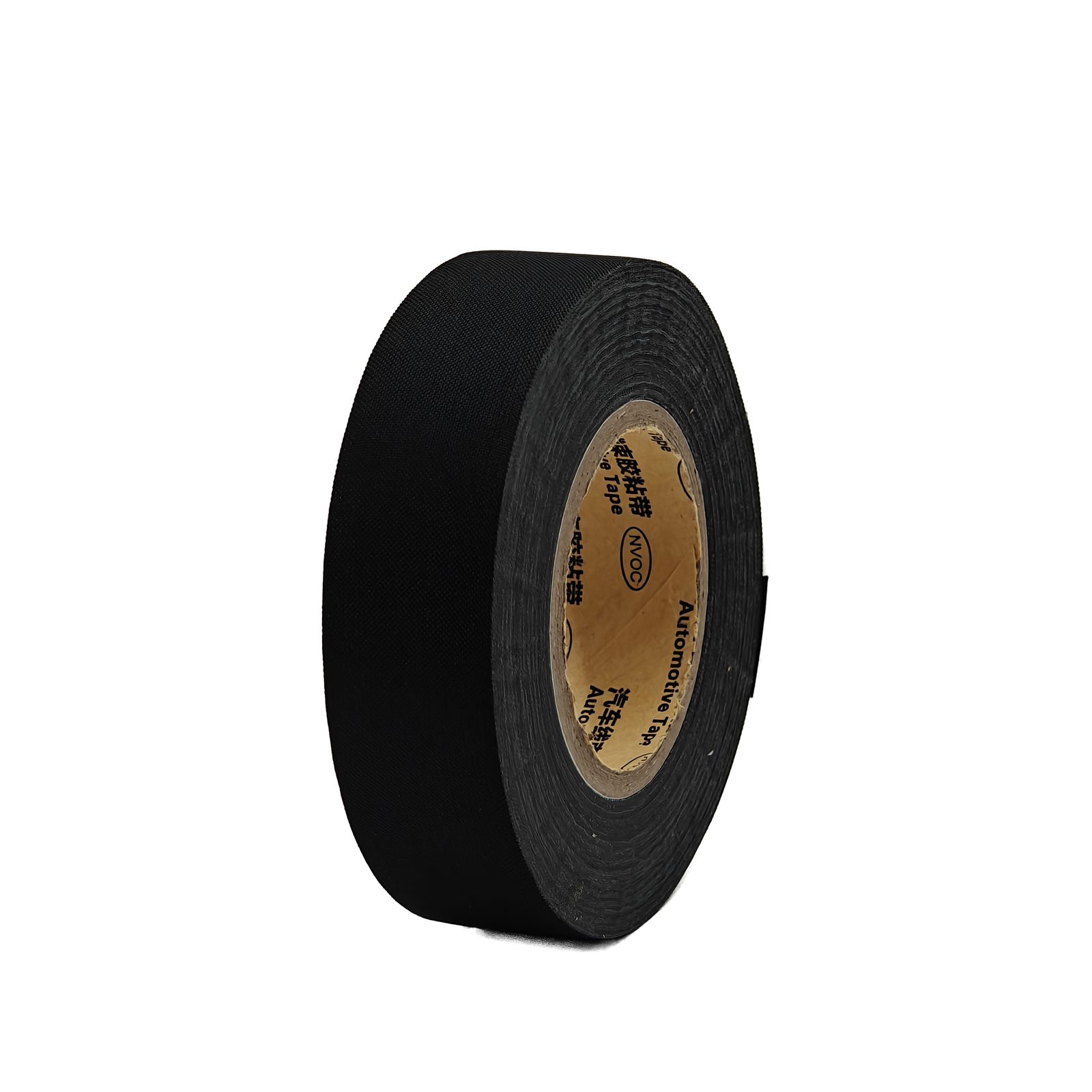

BY1300 PET Cloth Tape (Hand-tearable)
Overview
PET Cloth Tape uses high-strength polyester fabric as the base material, coated with synthetic rubber or acrylic adhesive. It features high adhesion, corrosion resistance, a soft texture and easy hand-tearing. The product meets low-VOC and low-odor environmental requirements.
Key features
- Hand-tearable
- High adhesion
- Stable and corrosion-resistant
- Soft and flexible
Technical data
| Property | Unit | Model |
|---|---|---|
| Product Grade | BY1300 | |
| Color | Black | |
| Thickness | mm | 0.14 |
| Substrate | PET Polyester Fabric | |
| Adhesive | Synthetic Rubber | |
| Tensile Strength | N/cm | 63 |
| Elongation at Break | % | 18 |
| Adhesion to Steel | N/cm | 3.5 |
| Temperature Resistance | °C | –40 ~ 125°C |
| Noise Damping | dB(A) | Class A (≤2) |
| Abrasion Resistance | cycle | Class A (0~99) |
| Flame Retardancy | Class B, Self-extinguishing | |
| Tearability | Hand-tearable | |
| Environmental Certification | ROHS2.0 REACH |
Note: The above parameters are typical values for reference only.
Unit conversions for comparison: 1 N/cm = 2.5 N/25mm; 1 N/25mm ≈ 102 g/25mm (1 N = 101.97 gf).
Product advantages
Hand-tearable, No Tools Required
Tears smoothly by hand without scissors or tools for fast application and higher assembly efficiency.
High Adhesion
High-performance adhesive delivers strong initial and holding tack (steel adhesion 3.5 N/cm) for firm, reliable bundling.
Stable & Corrosion-Resistant
Chemically stable substrate and adhesive layer resist common media corrosion for reliable long-term performance.
Soft & Flexible
Soft and flexible, conforming well to harnesses and irregular surfaces for smooth, secure wrapping.
Wide Temperature Range & Flame Retardancy
Operating range -40°C to 125°C with B-class self-extinguishing flame retardancy - moderate heat resistance plus electrical safety.
Eco-friendly, Low VOC & Low Odor
Compliant with ROHS2.0 and REACH with low VOC and low odor - ideal for enclosed environments such as vehicle interiors.
Application scenarios
Automotive Cable Bundling
For long-term secure bundling and wrapping of automotive cables, balancing heat/abrasion resistance with low-odor requirements.
Industrial Equipment Wiring
Secure bundling of industrial equipment wiring with moderate temperature and abrasion resistance for lasting reliability.
Moderate Temperature & Wear Protection
For harness wrapping and protection where moderate temperature and abrasion resistance are required.
Standard & certification
ROHS · REACH
Fabric electrical tape for fast harness wrapping
The BY1300 is a fabric electrical tape in the literal sense: a woven polyester fabric backing with a synthetic rubber adhesive, designed to be torn by hand. On a harness board that removes a tool from the process, which is why this grade is usually chosen over a non-tearable wire harness tape wherever wrapping speed drives the cost.
Fabric electrical tape: common questions
How is fabric electrical tape different from PVC electrical tape?
PVC tape is a film tape used for insulation and colour coding. A fabric electrical tape such as the BY1300 is a bundling and abrasion tape: it wraps a harness bundle and protects it mechanically.
What temperature does it hold?
−40 °C to 125 °C continuous, with B-class self-extinguishing flame retardancy.
Datasheet version: September 2026.
