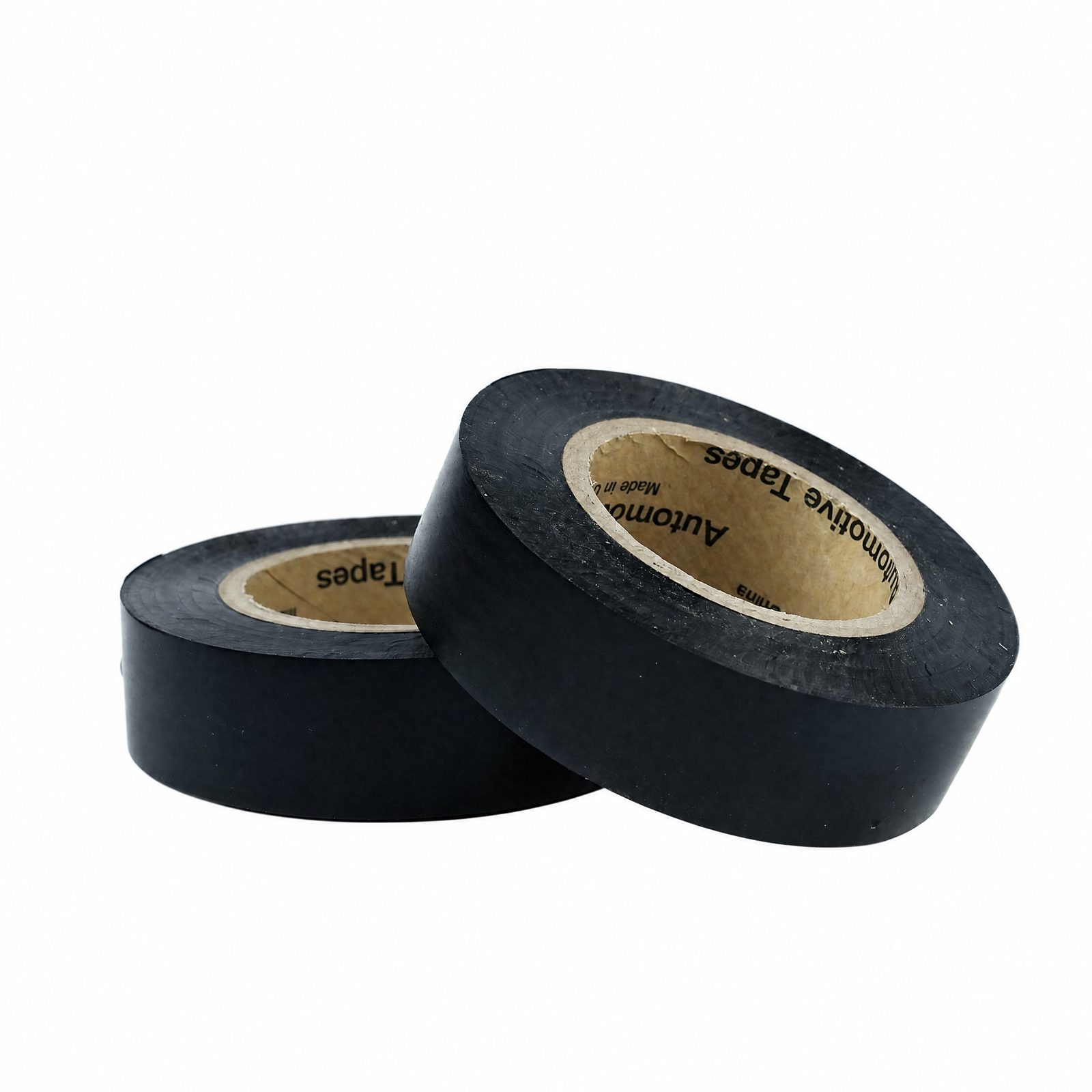

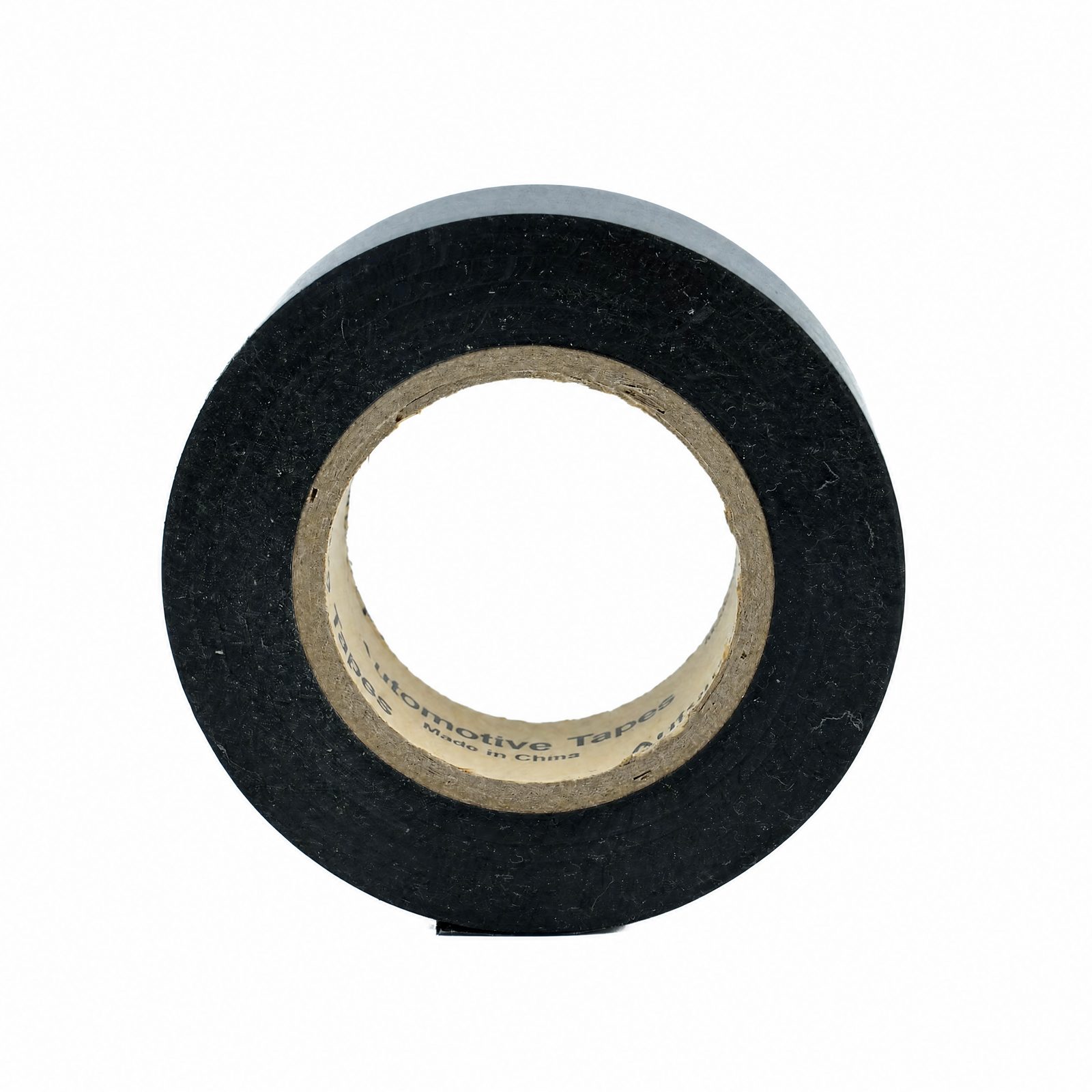

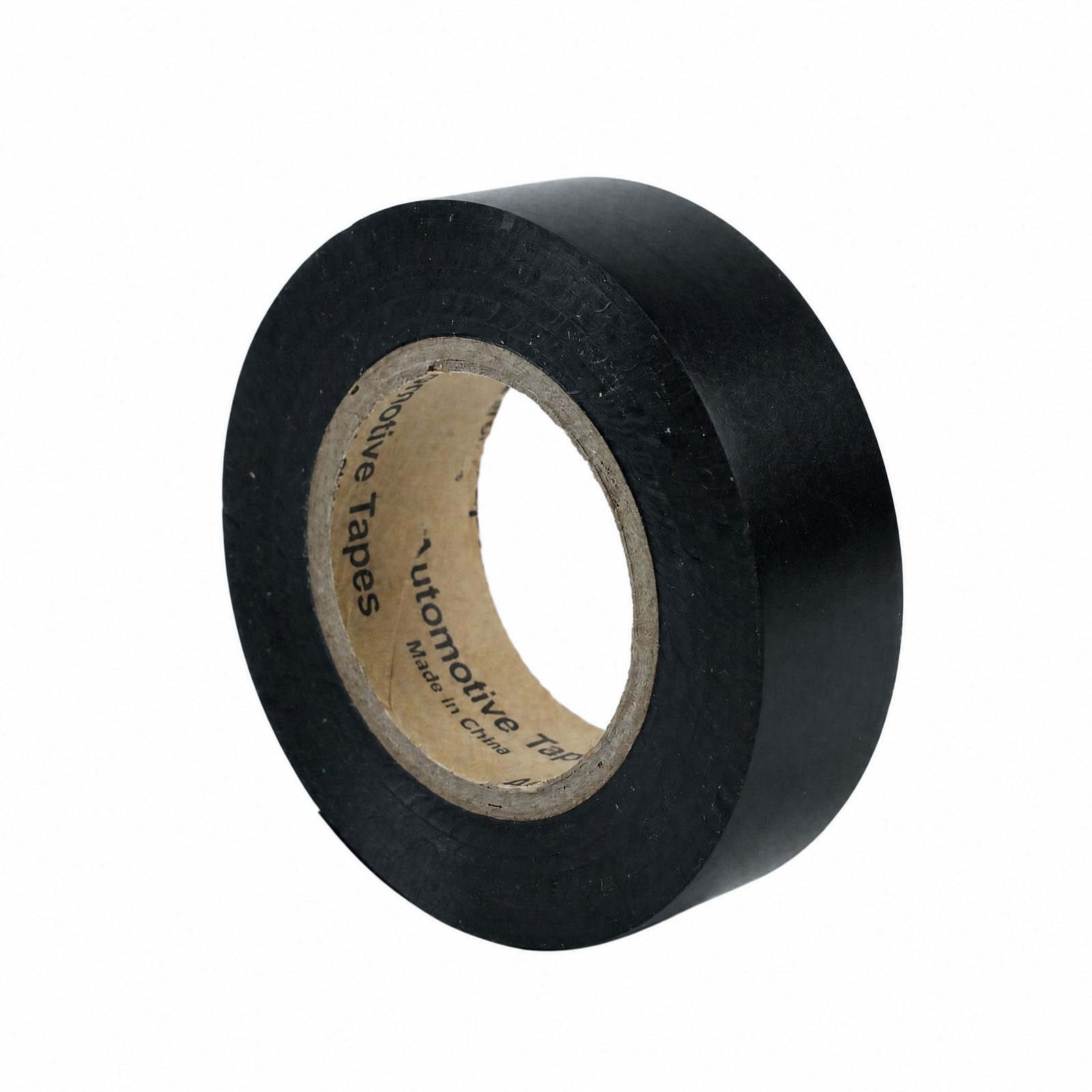

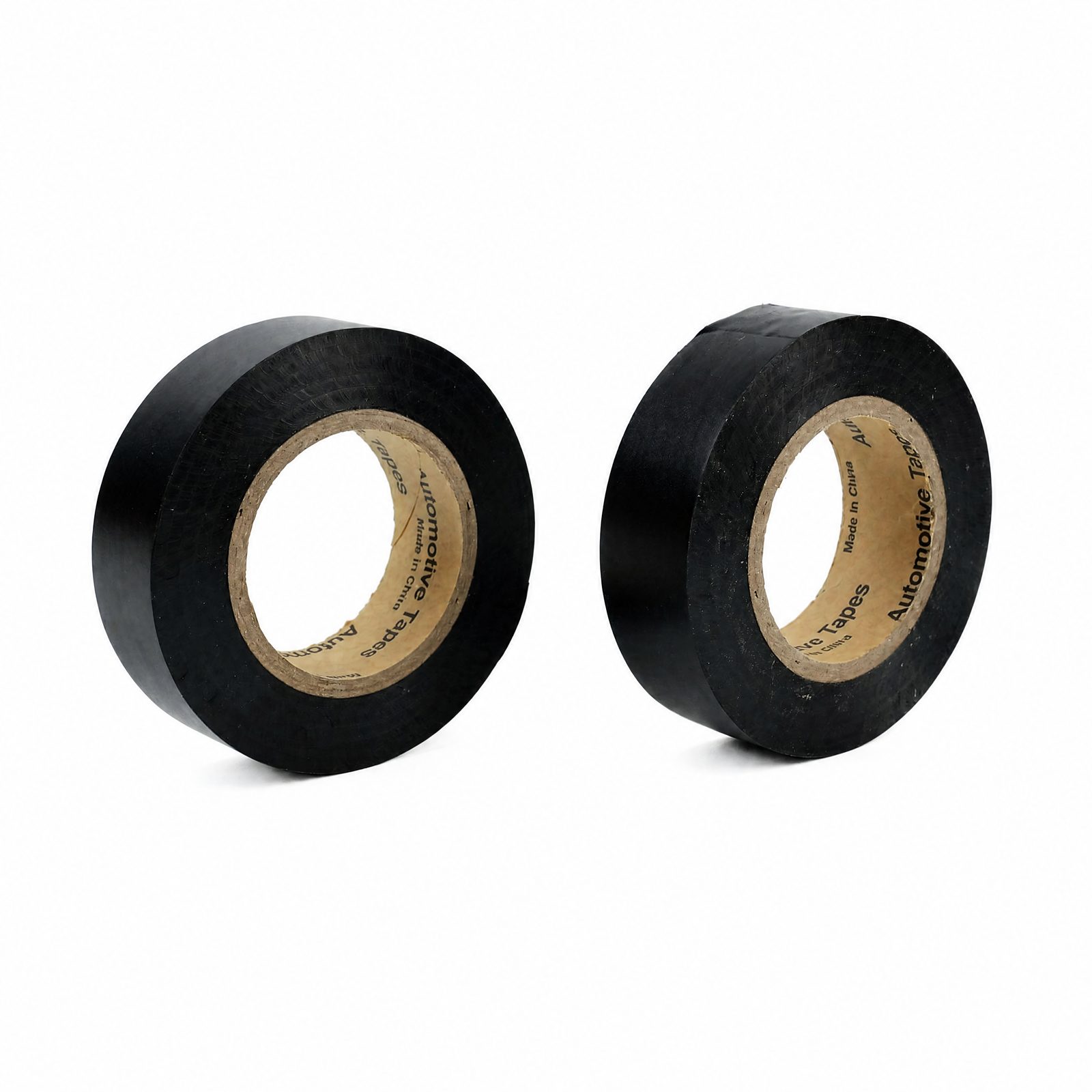

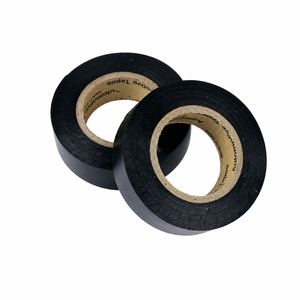

P105Z PVC Film Electrical Tape
Overview
PVC tape is made of high-quality polyvinyl chloride (PVC) as the base material, coated with high-performance acrylic pressure-sensitive adhesive. It is suitable for both manual and machine wrapping, is chemical solvent resistant, has good uniformity, and is hand-tearable.
Key features
- Excellent chemical resistance
- Good low-temperature and high-temperature resistance
- Excellent aging resistance
Technical data
| Property | Unit | Model |
|---|---|---|
| Product Grade | P105Z | |
| Substrate | PVC Flame retardant Film | |
| Adhesive | Acrylic UV Adhesive | |
| Color | Black, Orange | |
| Thickness | mm | 0.100 ± 0.01 |
| Tensile Strength | N/cm | ≥15 |
| Elongation at Break | % | ≥110 |
| Adhesion to Steel | N/cm | ≥1.0 |
| Temperature Resistance | °C | –40 ~ 105°C |
| Flame Retardancy | Class B, Self-extinguishing | |
| Breakdown Voltage | kv | 6.41kv |
| Environmental Certification | ROHS REACH |
Note: The above parameters are typical values for reference only.
Unit conversions for comparison: 1 N/cm = 2.5 N/25mm; 1 N/25mm ≈ 102 g/25mm (1 N = 101.97 gf).
Product advantages
Excellent Chemical Resistance
Made from high-quality PVC with strong resistance to chemical solvents - suited to oily environments such as engine compartments.
Cold & Heat Resistance
Operating range -40°C to 105°C with both low-temperature flexibility and heat resistance.
Excellent Aging Resistance
Resists aging and cracking over long-term use with stable adhesion and insulation.
Flame retardant, Self-extinguishing
B-class self-extinguishing flame retardancy improves automotive electrical system safety.
Good Insulation
Breakdown voltage of 6.41KV provides reliable electrical insulation for wire harnesses.
Hand-tearable & Flexible Conformability
Hand-tearable for both manual and machine wrapping; flexible, uniform and conformable.
Application scenarios
Automotive Internal Harness Bundling
Specialized for bundling and protecting automotive internal electrical wire harnesses.
Automobile Manufacturing & Maintenance
Plays a key role in automobile manufacturing and maintenance, ensuring reliability and safety of the electrical system.
Manual & Machine Wrapping
For harness bundling by either manual wrapping or machine wrapping.
Standard & certification
ROHS · REACH
Electrical wire tape for general wiring work
The P105Z is the general-purpose electrical wire tape in the range: a flexible PVC film with a rubber-based adhesive, used for insulating and bundling wiring, colour coding and light protection. It is a flame retardant electrical tape as well — self-extinguishing — so it meets the minimum safety expectation for automotive and appliance wiring without a high-temperature rating.
Datasheet version: September 2026.
