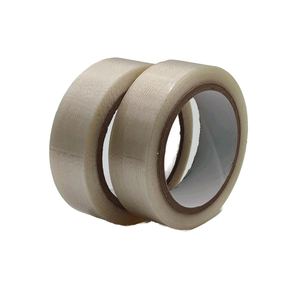

BX8150W / BX8150H Filament (Fiberglass Cloth) Tape
Overview
Filament Tape is a composite material made from woven glass fiber fabric as the base material, impregnated and coated with a polymer anti-adhesive emulsion. It features high tensile strength, high temperature resistance and chemical corrosion resistance.
Key features
- High Tensile Strength
- Friction Resistance
- High Temperature Resistance
- Solvent Resistance
- Good Insulation Performance
- Excellent Flame Retardancy
Technical data
| Product Name | BX8150W | BX8150H |
|---|---|---|
| Substrate | PET | PET |
| Total Thickness (mm) | 140-145 | 140-150 |
| Color | Translucent | Translucent |
| Initial Tack (mm) | <100 | <100 |
| Peel Strength (N/25mm) | ≥15 | ≥15 |
| Holding Power (H) | ≥3 | ≥5 |
Product advantages
High Tensile Strength
Made from woven glass fiber fabric with polymer emulsion coating, delivering high tensile strength for structural reinforcement and heavy-duty wrapping.
High Temperature Resistance
Suitable for transformers, high-temperature equipment and motors with stable performance under prolonged heat.
Chemical & Solvent Resistance
The polymer coating effectively blocks oils, solvents and chemical media.
Good Insulation Performance
Provides reliable electrical insulation for coil wrapping and electrical component protection.
Excellent Flame Retardancy
Good flame retardancy improves safety in high-temperature and electrical environments.
Friction & Tear Resistance
Tough, wear-resistant substrate ensures firm, reliable wrapping.
Application scenarios
Transformers & Coils
Wrapping, fixing and insulation protection for transformers and coils.
High-Temperature Equipment
Wrapping and protection for air conditioning contactors, electric heating equipment and other high-temperature parts.
Motors & Other High-Temperature Environments
Insulation and reinforcement for motor windings and other high-temperature environments.
Insulation Protection & Structural Reinforcement
Widely used for insulation protection and structural reinforcement across electrical equipment.
Technical Data
Note: The above parameters are typical values for reference only.
Standard & certification
ISO 9001 / IATF 16949 / ROHS / REACH / Product Usage Scenarios
Datasheet version: September 2026.
